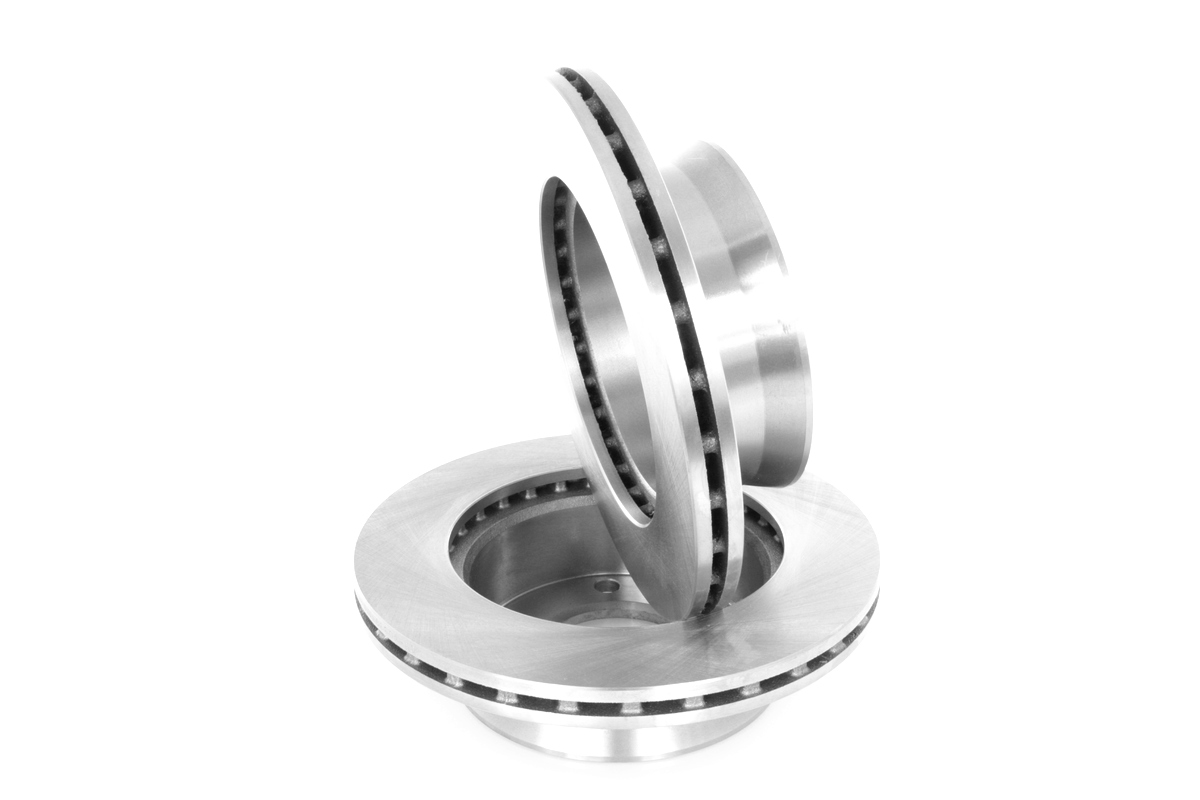

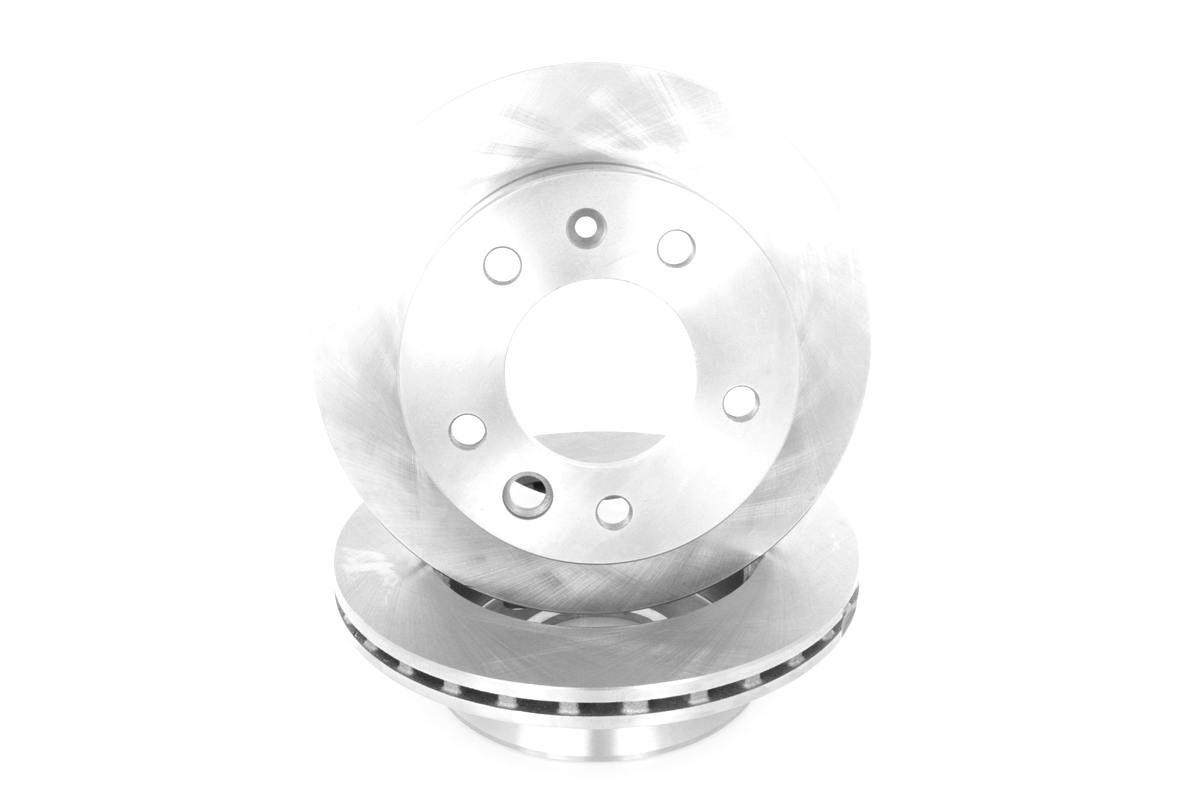

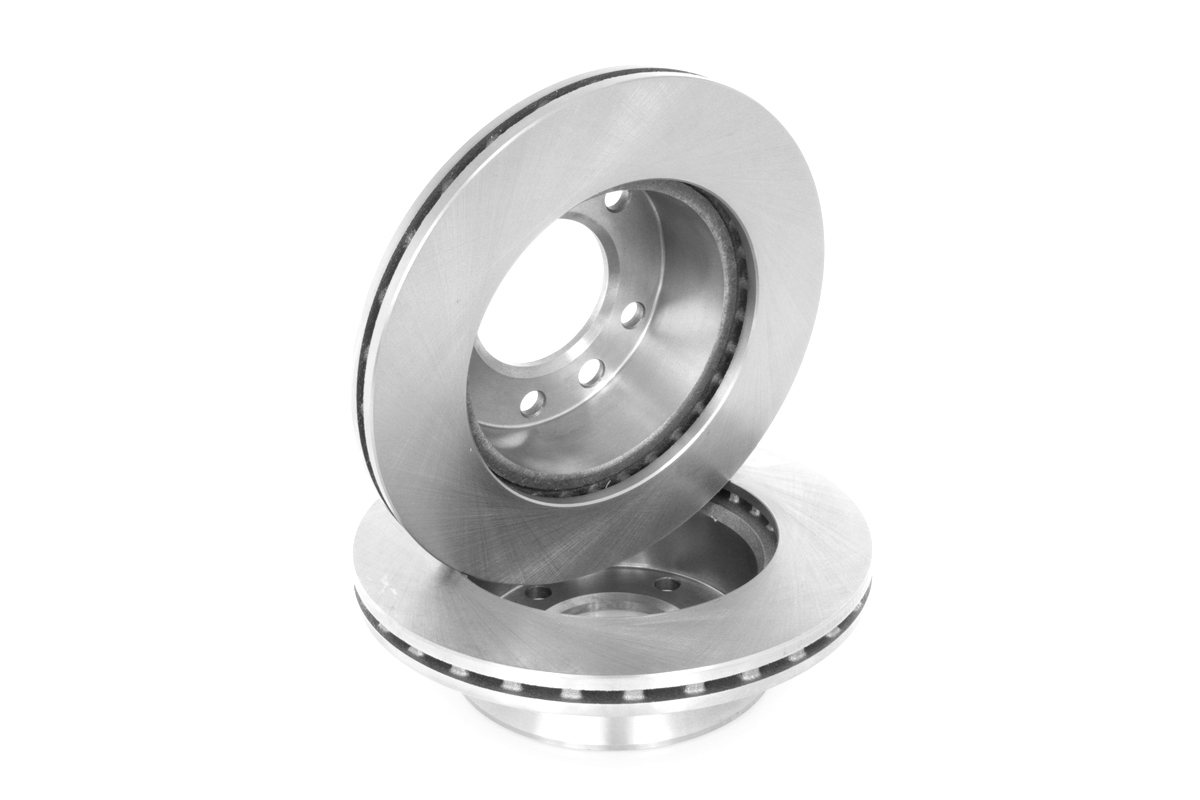

Brake Disc GH-403391
Manufacturer: GH
Where to buy
Authorized distributors
GH-Parts is a manufacturer. Products are available from authorized distributors:
-
Auto-GH sp. z o.o. Sp. K. ...Lublin, Poland
-
GH-Teile GmbH ...Berlin, Germany
-
Motorol Automotive sp. z o.o. ...Krakow, Poland
-
Auto-Partner Gdansk sp. z o.o. ...Gdansk, Poland
-
PH MOTOGAMA Sp. J. ...Krakow, Poland
Marketplaces / search engines
Links go to product search in the respective shop. GH-Parts is not responsible for stock levels or prices at distributors.
Technical specification
- Fitting Position
- Front Axle, Front Axle Right, Front Axle Left
- Brake Disc Thickness
- 22 mm
- Number of Holes
- 5
- Bolt Hole Circle Ø
- 130 mm
- Centering Diameter
- 85 mm
- Outer Diameter
- 276 mm
- Brake Disc Type
- Vented
- Thread Size
- 15
- Height
- 77 mm
Logistics specification
- Packaging type
- Cardboard Box
- Weight
- 6,350 g
- Height
- 77 mm
- Width
- 276 mm
- Depth
- 276 mm
OE numbers from vehicle manufacturers (4 / 35)
AUDI 3
- 2D0407617
- 2D0407617A
- 2D0615601E
MERCEDES-BENZ 19
- 9014210312
- 9014210612
- 9024210312
- 9024210412
- 9024210612
- 902421061204
- 9024210712
- 9024210912
- 902421091211
- 902421091264
- A9014210312
- A9014210612
- A9024210312
- A9024210412
- A9024210612
- A9024210712
- A9024210912
- A902421091211
- A902421091264
VAG 4
- 2D0615301A
- 2D0615301B
- 2D0615301C
- 2D0615301D
VW 9
- 2D0407617
- 2D0407617A
- 2D0615301A
- 2D0615301B
- 2D0615301C
- 2D0615301D
- 2D0615601E
- 2DO615301A
- 2DO615301C
Video
Fits vehicles
Loading...
Comparable numbers (139 / 260)
A.B.S. 3
- 16451
- 16453
- 17346
A.Z. Meisterteile 1
- AZMT440241496
ABAKUS 1
- 23103016
ABE 2
- C3M022ABE
- C4M015ABE
ABTEX 1
- BD683V
ADR 1
- 18532760
AIC 1
- 51637
AP 5
- 24722E
- 24804E
- 24867E
- 24868E
- 44062
ASAM AUTOMOTIVE 1
- 32917
ASHIKA 2
- 60000561
- 60000561C
ASHUKI by Palidium 1
- P330051
ATE 2
- 24012201611
- 24032201611
AUGER 1
- 31348
AUTOMEGA 1
- 120033510
BARUM 1
- BAR22161
BENDIX Braking 1
- BDS1057
BERAL 3
- BCR106A
- BCR153A
- BCR228A
BLUE PRINT 1
- ADU174360
BORG & BECK 3
- BBD5081
- BBD5134
- BBD5725S
BOSCH 2
- 0986478555
- 0986478849
BRAXIS 2
- AD0005
- AD0147
BRECK 1
- BR325VA100
BRECO 5
- BS8301
- BS8431
- BS8533
- BS8534
- BS8601
BREMBO 6
- 09731414
- 9731414
- 09731424
- 09847510
- 09961814
- 09961824
BREMSI 2
- CD5106V
- CD7013V
BSG 1
- BSG60210006
CAR 2
- 142432
- HPD432
CASALS 1
- 55147
CHAMPION 1
- 569122CH
CIDAK 1
- CBD1124
CIFAM 2
- 800418
- 800645
COMLINE 3
- ADC1610V
- ADC1618
- AND6110
DACO Germany 1
- 603340
DANBLOCK 1
- DB521948
DBA Australia 1
- DBA566
DELPHI 2
- BG3194
- BG3236
DENCKERMANN 1
- B130039
DIAMAX 1
- N08059
DJ PARTS 2
- BD1484
- BD1485
DON 1
- PCD18652
DR!VE+ 1
- DP1010110735
DT Spare Parts 1
- 463998
EBC Brakes 1
- D843
EGT 4
- 410025CEGT
- 410025EGT
- 410391CEGT
- 410391EGT
EUROBRAKE 3
- 5815203377
- 5815203397
- 5815313397
EUROREPAR 2
- 1618882380
- 1667859480
FAST 1
- FT31522
FEBI BILSTEIN 3
- 22857
- 7517
- 07517
FERODO 3
- FCR106A
- FCR153A
- FCR228A
FI.BA 1
- FBD256
FOMAR Friction 1
- FO2331
FRAS-LE 1
- FLDI00057
FREMAX 1
- BD0181
FREY 2
- 745203501
- 745203701
FTE 4
- 9072023
- 9082045
- BS4544
- BS4544B
GALFER 1
- B1G22201611
GH 1
- GH403391
GIRLING 2
- 6027901
- 6043213
HART 2
- 214327
- 241119
HELLA 2
- 8DD355111001
- 8DD355128251
HELLA PAGID 2
- 8DD355111001
- 8DD355128251
Hi-Q 1
- SD5715
ICER 2
- 78BD01811
- 78BD01861
JAPANPARTS 2
- DI0561
- DI0561C
JAPKO 2
- 600561
- 600561C
JP GROUP 1
- 1163109800
JPN 1
- 30H9042JPN
JURATEK 1
- MER127
JURID 5
- 561965J
- 562086JC
- 567116J
- 567760J
- 569122J
KAGER 1
- 370300
KAMOKA 2
- 103306
- 103382
KAWE 1
- 646110
KEY PARTS 2
- KBD5134
- KBD5725S
KLAXCAR FRANCE 1
- 25871Z
KRAFT AUTOMOTIVE 1
- 6041410
KRAFTVOLL GERMANY 1
- 07040094
LEMFÖRDER 2
- 2222003
- 3123301
LPR 1
- M2561V
MAGNETI MARELLI 8
- 353612837240
- 360406032400
- 360406032500
- 360406032800
- 360406033200
- 361302040216
- 361302040298
- 361302040384
MANDO 1
- MBC035104
MAPCO 2
- 15794
- 15794C
MASTER-SPORT GERMANY 8
- 24012201611PCSMS
- 24012201611PCSMSP
- 24012201611SETMS
- 24012201611SETMSP
- 24012201961PCSMS
- 24012201961PCSMSP
- 24012201961SETMS
- 24012201961SETMSP
MATRIX PRO 1
- MX02421149
MAXGEAR 3
- 190730
- 190730MAX
- 190730SPORT
MAXTECH 1
- 873546
MEC-DIESEL 1
- 579030
MERITOR 1
- MBR6011
METELLI 2
- 230418
- 230645
METZGER AUTOTEILE 2
- 6110142
- 6110472
MEYLE 3
- 155212032
- 0155212032
- 0835212032PD
MINTEX 2
- MDC1037
- MDC1037C
MOTAQUIP 1
- LVBD822
MOTRIO 1
- 8671019288
MTR 2
- 12108511
- MT6143
National 1
- NBD790
NEW BLOX 1
- NB015720V05F
NK 3
- 203377
- 203397
- 313397
Omnicraft 4
- 2134556
- 2134558
- 2134630
- 2134632
OPEN PARTS 1
- BDA170620
OPTIMAL 3
- BS4611
- BS7290
- BS7290HC
OSSCA 1
- 15141
PE Automotive 2
- 01629100A
- 76600200A
Professional Parts 1
- 51252539
ProfiPower 2
- 3B1027
- 3B1213
PROTECHNIC 2
- PRD2132
- PRD2769
QUARO 1
- QD3416
QUINTON HAZELL 2
- BDC4544
- BDC4547
R BRAKE 1
- 78RBD10181
RAICAM 1
- RD00505
RAP BRAKES 2
- RD0713
- RD0713C
REMSA 1
- 646110
RIDEX 2
- 82B0234
- 82B0507
ROADHOUSE 1
- 646110
ROTINGER 8
- RT2539
- RT2539GL
- RT2539GLT3
- RT2539GLT5
- RT2539GLT6
- RT2539GLT9
- RT2716
- RT2716GL
SAMKO 1
- M2561V
SAMPA 1
- 206436
SASIC 2
- 6106101
- 9004846J
SKF 1
- VKBD80174V2
ST-TEMPLIN 1
- 031101926180
Stark 2
- SKBD0020239
- SKBD0022236
STELLOX 6
- 60203334VKSX
- 60203334VSX
- 60203344VKSX
- 60203344VSX
- 8500721SX
- 8500730SX
SWAG 2
- 10907517
- 10922857
TEXTAR 4
- 982001315PRO
- 92105400
- 92131500
- 92131503
TOMEX Brakes 1
- TX7007
TOPRAN 1
- 107687
TRISCAN 1
- 812010169C
TRUCKTEC AUTOMOTIVE 1
- 0235025
TRUSTING 2
- DF506
- DF538
TRW 2
- DF2790
- DF4321
VAICO 2
- V1080013
- V3080053
VALEO 4
- 186774
- 187041
- 197059
- 672571
VARTEX GERMANY 1
- 42187290
vika 1
- 66151093301
WAGNER 1
- WGR62281
WOKING 1
- D646110
Wti Automotive 1
- K716706
WXQP 1
- 140177
ZentParts 2
- Z05953
- Z06004
ZIMMERMANN 2
- 400360520
- 400647020
