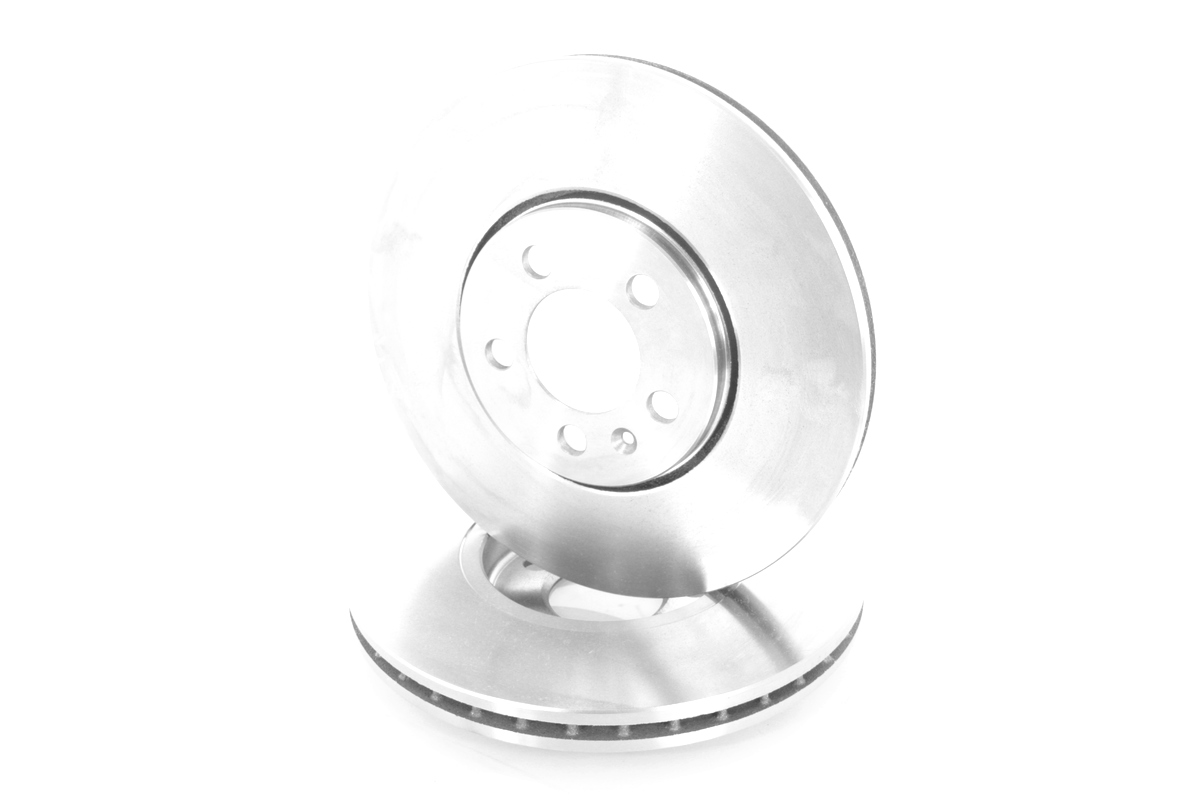

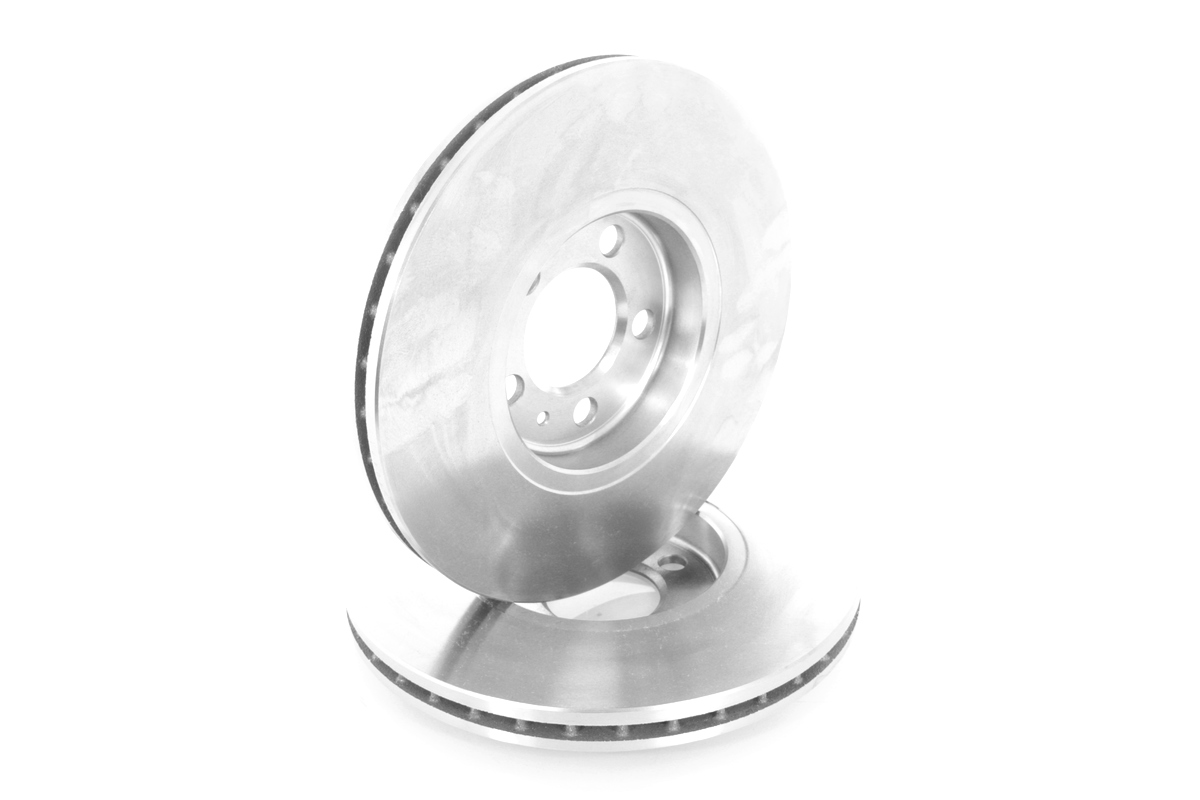

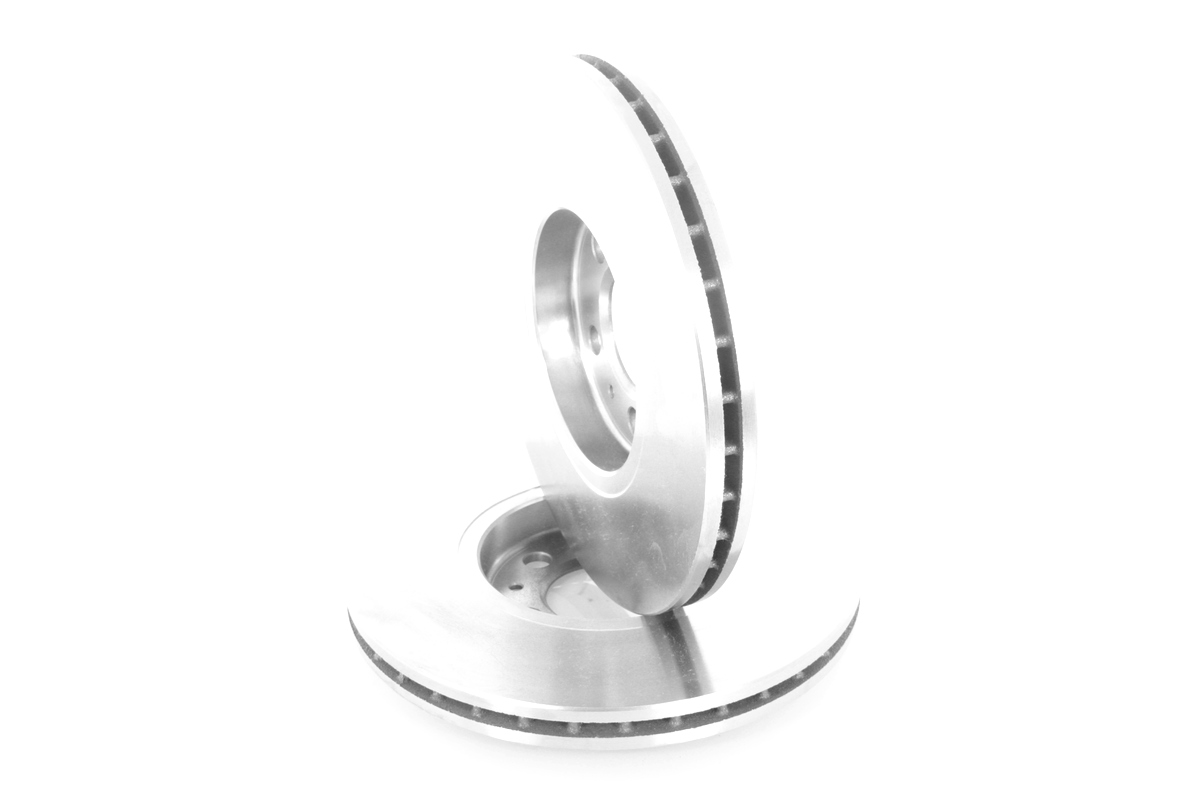

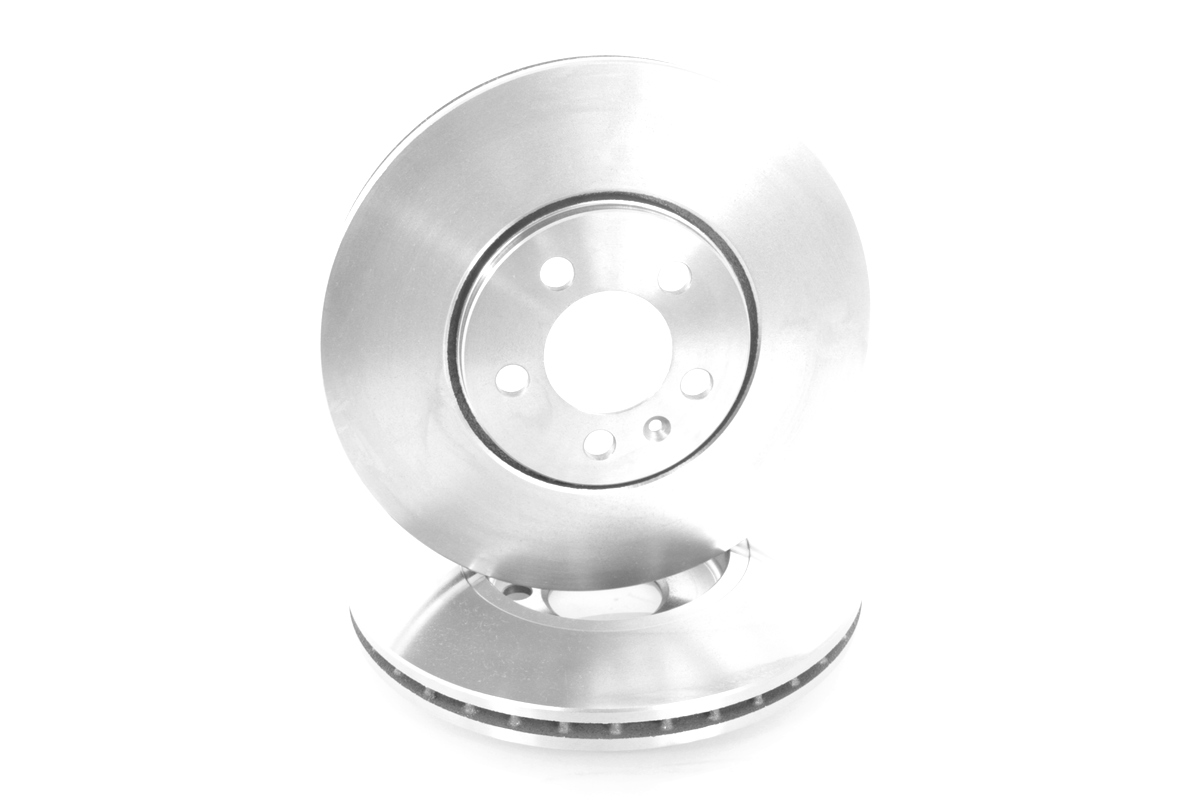

Brake Disc GH-404712
Manufacturer: GH
Where to buy
Authorized distributors
GH-Parts is a manufacturer. Products are available from authorized distributors:
-
Auto-GH sp. z o.o. Sp. K. ...Lublin, Poland
-
GH-Teile GmbH ...Berlin, Germany
-
Motorol Automotive sp. z o.o. ...Krakow, Poland
-
Auto-Partner Gdansk sp. z o.o. ...Gdansk, Poland
-
PH MOTOGAMA Sp. J. ...Krakow, Poland
Marketplaces / search engines
Links go to product search in the respective shop. GH-Parts is not responsible for stock levels or prices at distributors.
Technical specification
- Fitting Position
- Front Axle, Front Axle Right, Front Axle Left
- Brake Disc Thickness
- 25 mm
- Number of Holes
- 5
- Bolt Hole Circle Ø
- 100 mm
- Centering Diameter
- 65 mm
- Outer Diameter
- 288 mm
- Brake Disc Type
- Vented
- Thread Size
- 15,5
- Height
- 34 mm
- EU General Product Safety Regulation (GPSR)
- IEC 60417-6183 mechanical expertise required
Logistics specification
- Packaging type
- Cardboard Box
- Weight
- 7,040 g
- Height
- 50 mm
- Width
- 300 mm
- Depth
- 300 mm
