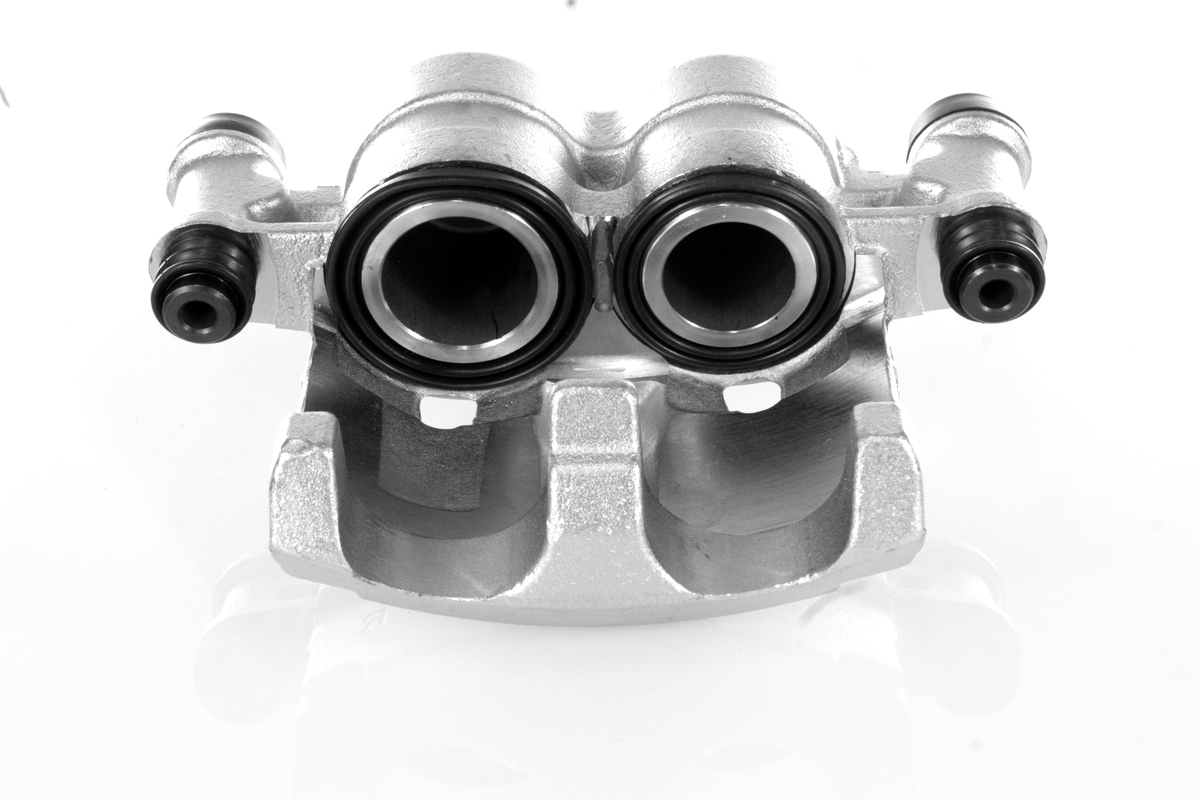

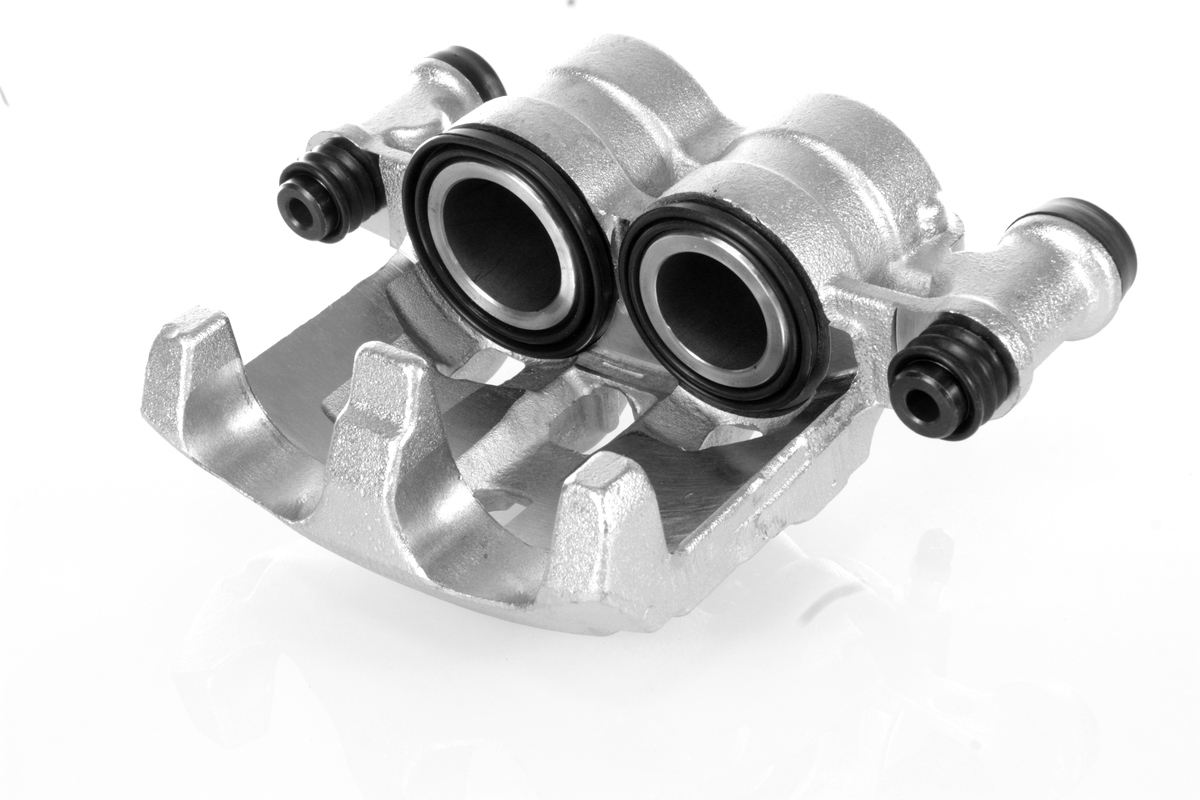

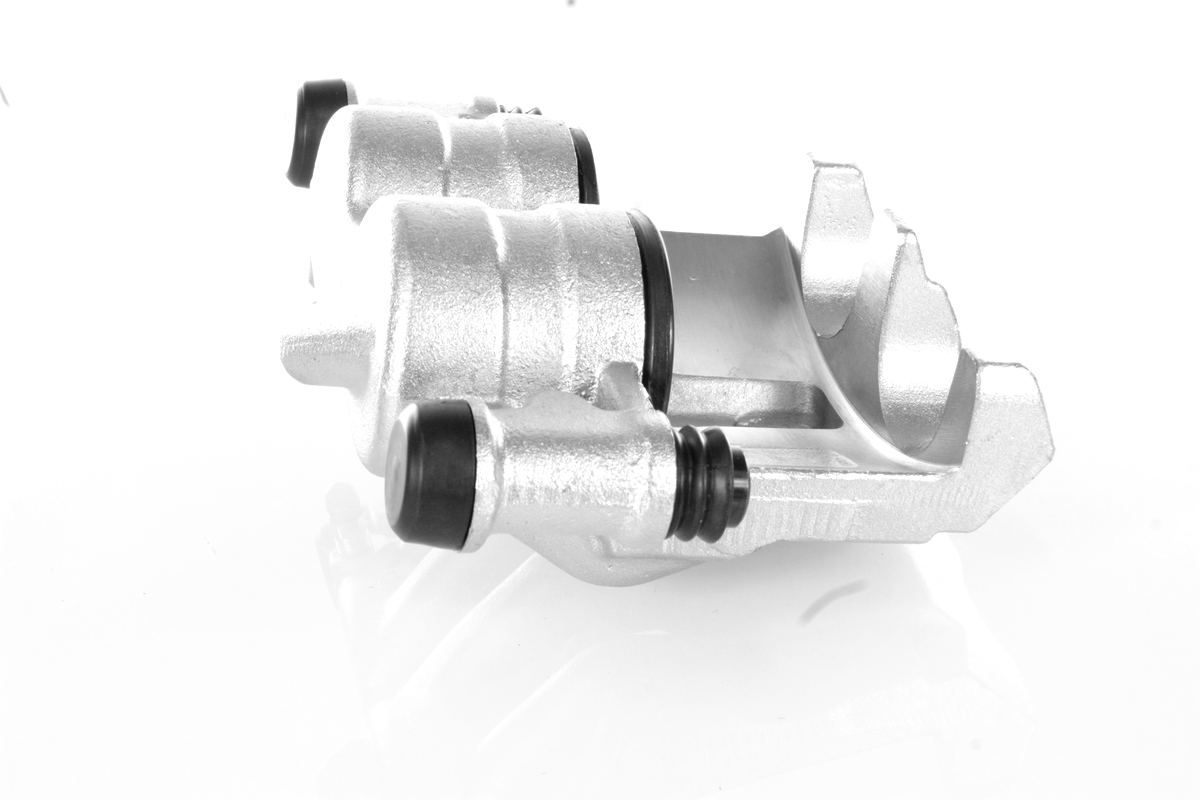

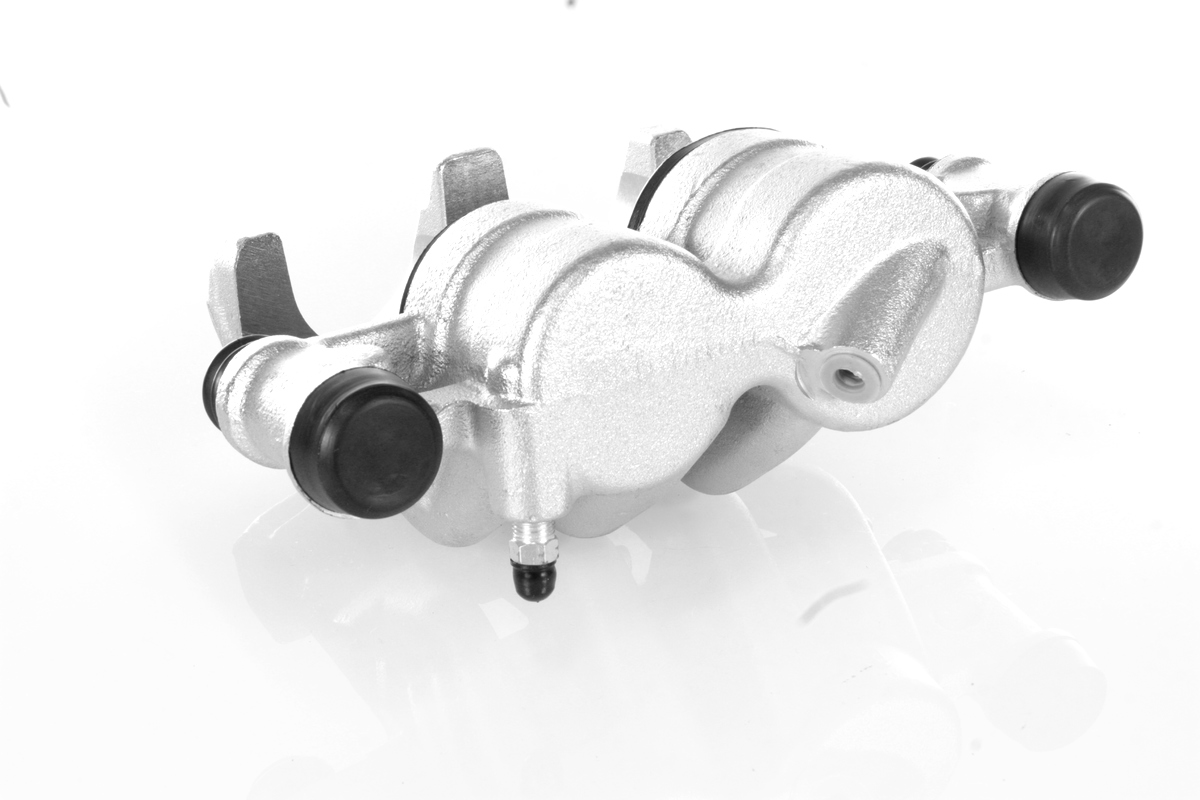

Brake Caliper GH-431961H
Manufacturer: GH
Where to buy
Authorized distributors
GH-Parts is a manufacturer. Products are available from authorized distributors:
-
Auto-GH sp. z o.o. Sp. K. ...Lublin, Poland
-
GH-Teile GmbH ...Berlin, Germany
-
Motorol Automotive sp. z o.o. ...Krakow, Poland
-
Auto-Partner Gdansk sp. z o.o. ...Gdansk, Poland
-
PH MOTOGAMA Sp. J. ...Krakow, Poland
Marketplaces / search engines
Links go to product search in the respective shop. GH-Parts is not responsible for stock levels or prices at distributors.
Technical specification
- Fitting Position
- Front Axle, Front Axle Right
- paired article number
- GH-431961V
- Brake Caliper Type
- Fist-type Caliper (2 pistons)
- for brake disc thickness
- 28 mm
- Piston Diameter 1
- 46 mm
- Piston Diameter 2
- 52 mm
- Material
- Cast Iron
- for brake disc diameter
- 280 mm
- Brake System
- BREMBO
- EU General Product Safety Regulation (GPSR)
- IEC 60417-6183 mechanical expertise required
Used part return not required
Logistics specification
- Packaging type
- Cardboard Box
- Weight
- 5,260 g
- Height
- 145 mm
- Width
- 145 mm
- Depth
- 277 mm
OE numbers from vehicle manufacturers (7 / 26)
ALFAROME/FIAT/LANCI 4
- 71793165
- 71793166
- 71793167
- 735353857
CITROËN 8
- 1607876380
- 4401J9
- 71793165
- 71793166
- 71793167
- 735353857
- 1651765980
- 1651767080
FIAT 7
- 77364049
- 77365977
- 51885309
- 71793165
- 71793166
- 71793167
- 735353857
OPEL 1
- 4401J9
PEUGEOT 4
- 1607876380
- 4401J9
- 1651765980
- 1651767080
POLARSUN 1
- EA2284118
VAUXHALL 1
- 4401J9
Video
Fits vehicles
Loading...
Comparable numbers (72 / 96)
A.B.S. 1
- 522972
A.Z. Meisterteile 1
- AZMT440231302
ABAKUS 1
- 13104134
ABE 2
- CZH1498
- CZH1499
ABTEX 1
- ABC1597R
ASAM AUTOMOTIVE 1
- 99832
ASHUKI by Palidium 1
- PAL41072
ASVA 1
- PGBCBOXIIIFR
ATE 1
- 24352117125
Automotive RYME 1
- 45079
Axia 1
- 393915
BOSCH 2
- 0986134303
- 0986135303
BRAXIS 1
- AG1362
BREMBO 2
- F61235
- FBR015
BUDWEG CALIPER 1
- 343915
Calipere+ NAIBA 1
- C637R
CASALS 1
- MD2135
COMLINE 2
- CBC169L
- CBC169R
DACO Germany 1
- BA0915
DENCKERMANN 1
- B190247R
DEPA 1
- ET73915
DRI 1
- 3296110
EAI 1
- 2284118
ELSTOCK 1
- 831916
ENERGY 1
- ZH0107
ERA Benelux 1
- BC63915
ESEN SKV 5
- 23SKV406
- 23SKV406BLACK
- 23SKV406BLUE
- 23SKV406RED
- 23SKV406YELLOW
EUROBRAKE 1
- 53012119146
FAST 1
- FT32839
FEBI BILSTEIN 1
- 179431
FERODO 1
- FCL694776
FTE 3
- 9291551
- 9298235
- RX529818A0
GENERAL RICAMBI 1
- CI6194
GH 1
- GH431961H
HART 1
- 261900
HELLA 2
- 8AC355394241
- 8AN355794241
HELLA PAGID 2
- 8AC355394241
- 8AN355794241
JP GROUP 1
- 3161900980
JURATEK 1
- JCA1597R
KAMOKA 1
- JBC0344
KAWE 1
- 343915
LAUBER 1
- 773439
MAPCO 1
- 4067
MAXGEAR 2
- 820257
- 820258
MAXTECH 7
- 6275047
- 6475044
- 6475045
- 6475046
- 6475047
- 6475048
- 6475049
METZGER AUTOTEILE 2
- 6250320
- 6260320
MOTAQUIP 2
- VBC268L
- VBC268R
MTR 1
- 12171383
National 1
- NBC7094R
NK 1
- 2119146
NTY 1
- HZPFT003
Omnicraft 1
- 2446577
OPTIMAL 1
- BC1100R
OSSCA 1
- 41613
POLCAR 1
- EA2284118
ProfiPower 1
- 4B1034R
RAP BRAKES 1
- RK0358
RCA FRANCE 1
- RCABC71
REMANTE 1
- 012001000273R
RIDEX 1
- 78B1058
SASIC 1
- 6500063
SHAFTEC 2
- BC2403R
- SBC1112R
SNRA 1
- 1284118
Stark 1
- SKBC0461057
STARTCAR 1
- 6284118
STELLOX 2
- 0590442SX
- 0590531SX
TEXTAR 1
- 38184700
TMI 1
- BR005657
TRISCAN 2
- 8170343915
- 817510120
TRW 1
- BHS1308E
VEGE 1
- 21724302
YSPARTS 1
- YSBC0114
